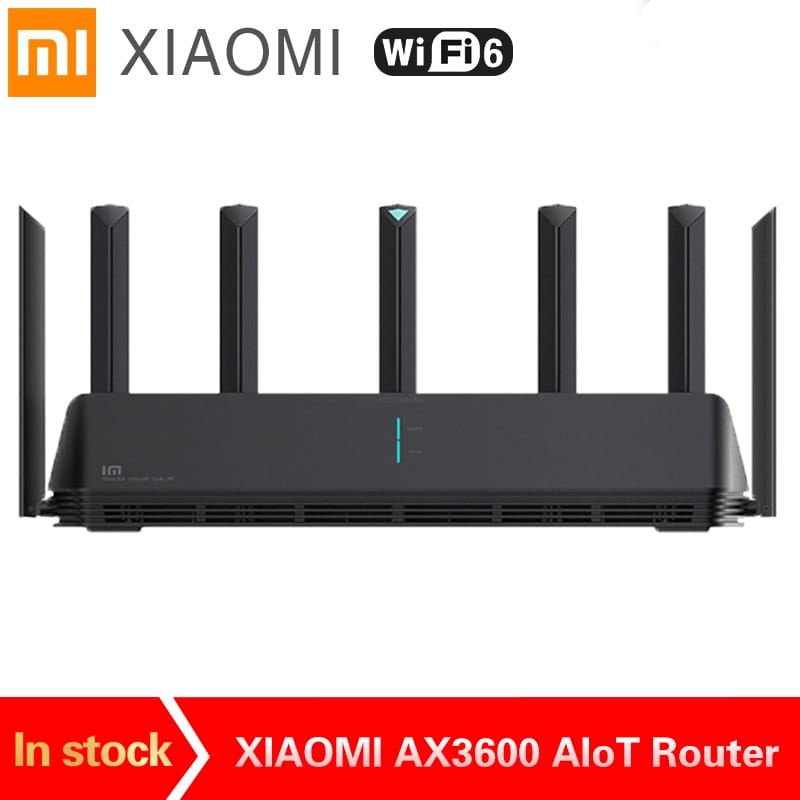

90% New Xiaomi AX3600 AIoT Router Wifi 6 Dual-Band 2976Mbs Gigabit Rate WPA3 Security Encryption A53 Signal For Smart Amplifier
modname=ckeditor
95% New Xiaomi AX3600 AIoT Router Wifi 6 Dual-Band 2976Mbs Gigabit Rate WPA3 Security Encryption A53 For Smart Signal Amplifier
Specification :
CPU | IPQ8071A 4Core A53 1GHz CPU |
Red engine acceleration | Dual core 1.7 GHz NPU |
ROM | 256MB |
Memory | 512MB |
2.4G Wi-Fi | 2x2 (IEEE802.11ax 574Mbps) |
5G Wi-Fi | 4x4 (IEEE802.11ax 2402Mbps) |
Antenna | 6 external high gain antennas + 1 lot antenna |
Heat dissipation | Natural heat dissipation |
From the physical interface | 1 * 10/100/1000 WAN (Auto MDI / MDIX) 3 * 10/100/1000 LAN (Auto MDI / MDIX) |
Led indicator light | 1 * System indicators 1 * INTERNET indicators 4 * network ports 1 * AIoT Light |
Reset Button | 1 * Reset button |
Interface power input | 1 * power input interface |
Wireless standard | IEEE 802.11a / b / g / n / ac / Ax IEEE802.3 / 3u / 3ab |
Certification standards | GB / T9254-2008; GB4943.1-2011 |
Dual band | 2.4 GHz, 5GHz |
Wireless channel | 2.4 GHz channel: 1.2, 3.4, 5.6, 7.8, 9.10, 11.12 13 5GHz channel: 36.40. 44.48. 149,153,157,161,165 |
Modulation mode | 11b: DSSS: DBPSK (1Mbps) DQPSK (2Mbps) CCK (5.5 / 11Mbps) 11a / g: OFDM: BPSK (6 / 9Mbps) QPSK (12 / 18Mbps) 16QAM (24 / 36Mbps) 64QAM (48 / 54Mbps) Iexcl; 11n: MIMO-OFDM: BPSK. QPSK. 16QAM. 64QAM! Speed set: MCS0 ~ MCS15 & iexcl; 11ac: MIMO-OFDM: BPSK. QPSK. 16QAM. 64QAM. 256QAM! Speed set: ~ MCS9 MCS0 (4 streams supported) AND iexcl; 11ax: MIMI-OFDM: BPSK. QPSK. 16QAM. 64QAM. 256QAM. 1024QAM! Speed Set: ~ MCS11 MCS0 (4 streams supported) |
Operating system | MiWiFi ROM smart router operating system based on deep GSM customization |
Wireless security | WPA-PSK / WPA2-PSK / WPA3-SAE encryption wireless access control (black and white list) SSID hidden red smart anti-scratch |
MANAGEMENT APPLICATION | Support website for Android and iOS |
Work environment | Operating temperature: 0 ~ 40 ° C |
Storage temperature: 10% ~ RH 90% non-condensing | |
Operating humidity: -40 ~ 70 ℃ | |
Storage humidity: 5% ~ RH 90% non-condensing |
Xiaomi AX3600 Long Router Main Features
* Qualcomm 6-core professional business grade chip
* Dual Core Network Acceleration Engine * Wi-Fi rate increases to 3000M * 6 high performance external signal amplifier signals * Large 512MB memory, supports up to 248 connected devices at the same time * AIoT smart antenna, OFDMA technology, MU-MIMO technology * BSS staining technology greatly improves customers' ability to resist Wi-Fi interference * WPA3 secure encryption protocol to protect data security of home network * Support bee formation technology, improved directional signal * Super heat dissipation to ensure stable operation Detailed parameters
Xiaomi AX3600 Long Router
Comparison of Wi-Fi 6 and Wi-Fi 5Wi-Fi 6 (802.11ax) is a new generation of standard Wi-Fi, which has greatly improved transmission speed,Signal coverage and data delay compared to the previous generation Wi-Fi5 (802.11ac).
Qualcomm 6-core business grade professional chipEquipped with Qualcomm 64-bit 4-core A53 CPU + 2-core Network Acceleration Engine,The professional business-grade chip IPQ8071A, Your DMIPS capacityIt is much stronger than chip solutions from other router manufacturers of the same speed specification,With stronger processing power and more stable operation.
Dual Core Network Acceleration EngineIPO8071A is also equipped with a Dual Core 1.7 GHz Network Acceleration Engine (NPU).Its unique design is specifically designed to handle network traffic,So the CPU can focus on other higher layer applications.The processing speed of network traffic has been greatly improved. Tookfun
Wi-Fi rate increased to 3000MProvides two 2.4GHz and 5GHz frequency bands, both with 802.11ax technologyAnd do not interfere with each other, simultaneous dual-band wireless speed of up to 2976Mbps* 2.4GHz band transmits farther, has better coverage and has better wall penetration performance* The 5GHz band has less interference and high speed, making it smoother to watch HD videosAnd play large-scale online games. Tookfun
6 high performance external signal amplifier signalsThe 2.4 GHz band and the 5GHz band are equipped with 2 and 4 high-performance external signal amplifiers (PA + LNA).PA (power amplifier) effectively improves the signal transmit power,Making the signal transmitted by the router stronger and stronger. LNA (low noise amplifier) can improveThe signal receiving sensitivity so that the router can receive deeper and weaker signals
512MB large memory, supports up to 248 connected devices at the same time
Smart AIoT antennaEquipped with a unique AIoT smart antenna, you can automatically discover the uninitializedXiaomi smart devices around you by opening the Mijia app
OFDMA technologyAllows the AX3600 to send data to multiple terminal devices with a single transmission(Up to 8 terminal devices ").OFDMA allows the transmission efficiency of multiple devices to work simultaneously to significantly improve,And the delay is significantly reduced.
MU-MIMO technologyIt allows multiple router antennas to serve multiple devices at the same time,So that each device has a high priority treatment,And it will not slow down the experience of other devices due to low speed device,Make the internet smoother
BSS staining technology greatly improves customers' ability to resist Wi-Fi interference
WPA3 secure encryption protocol to protect data security of home network
Support bee formation technology, improved directional signal
,
