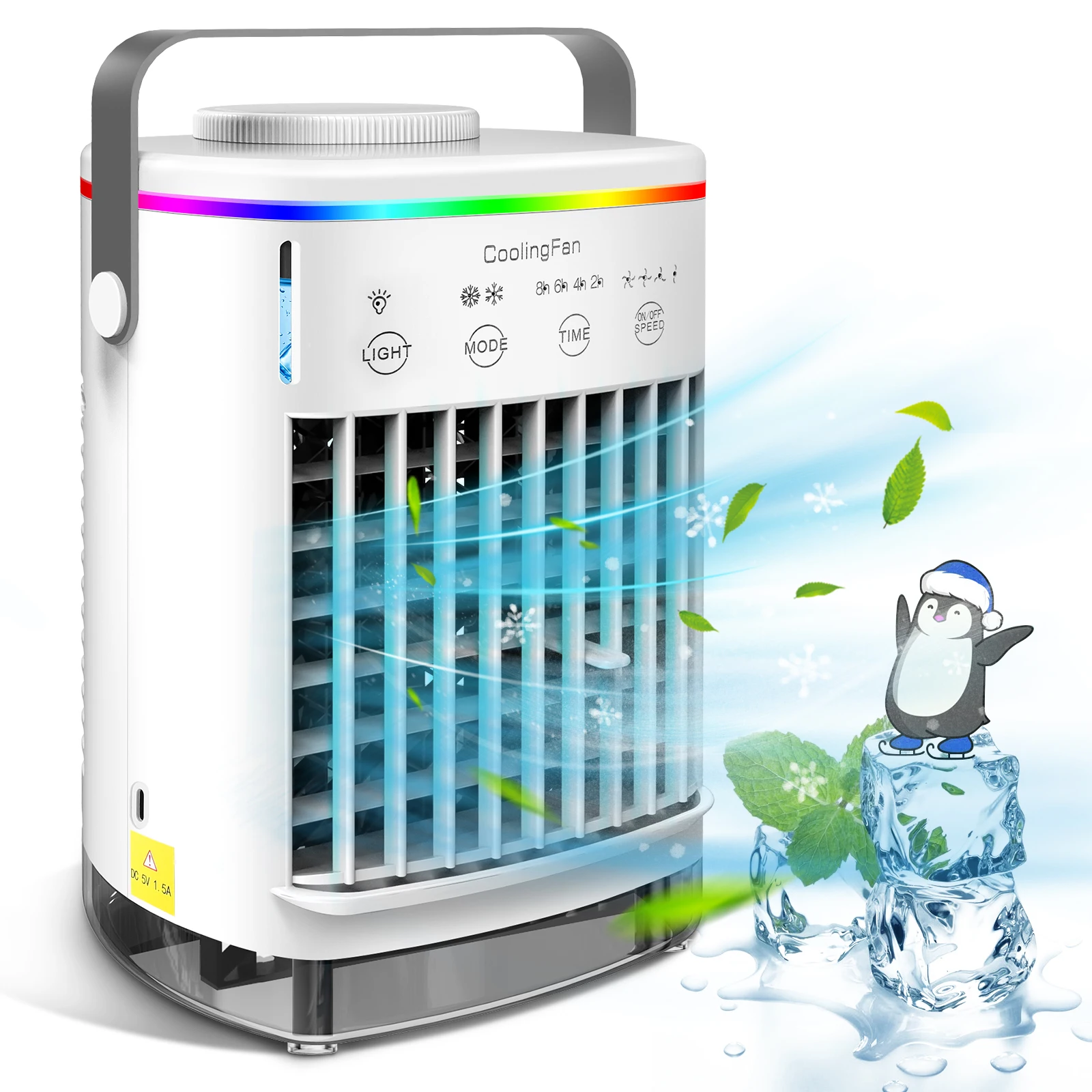

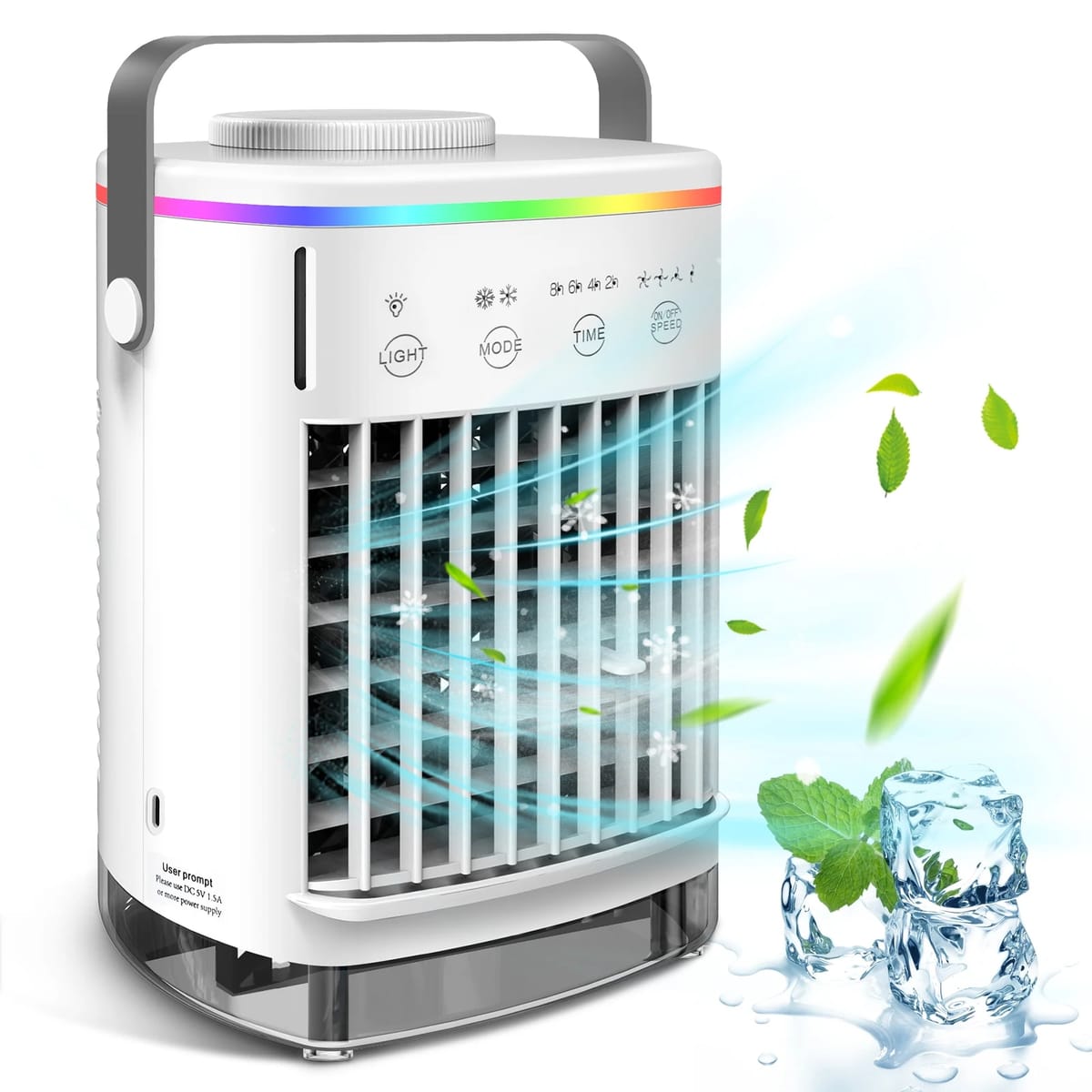

Air Cooler Fan Portable Misting Cooler Fan Mini USB Cooling Desktop Fan 7 Color Lights 4 Speed

Functional characteristics:

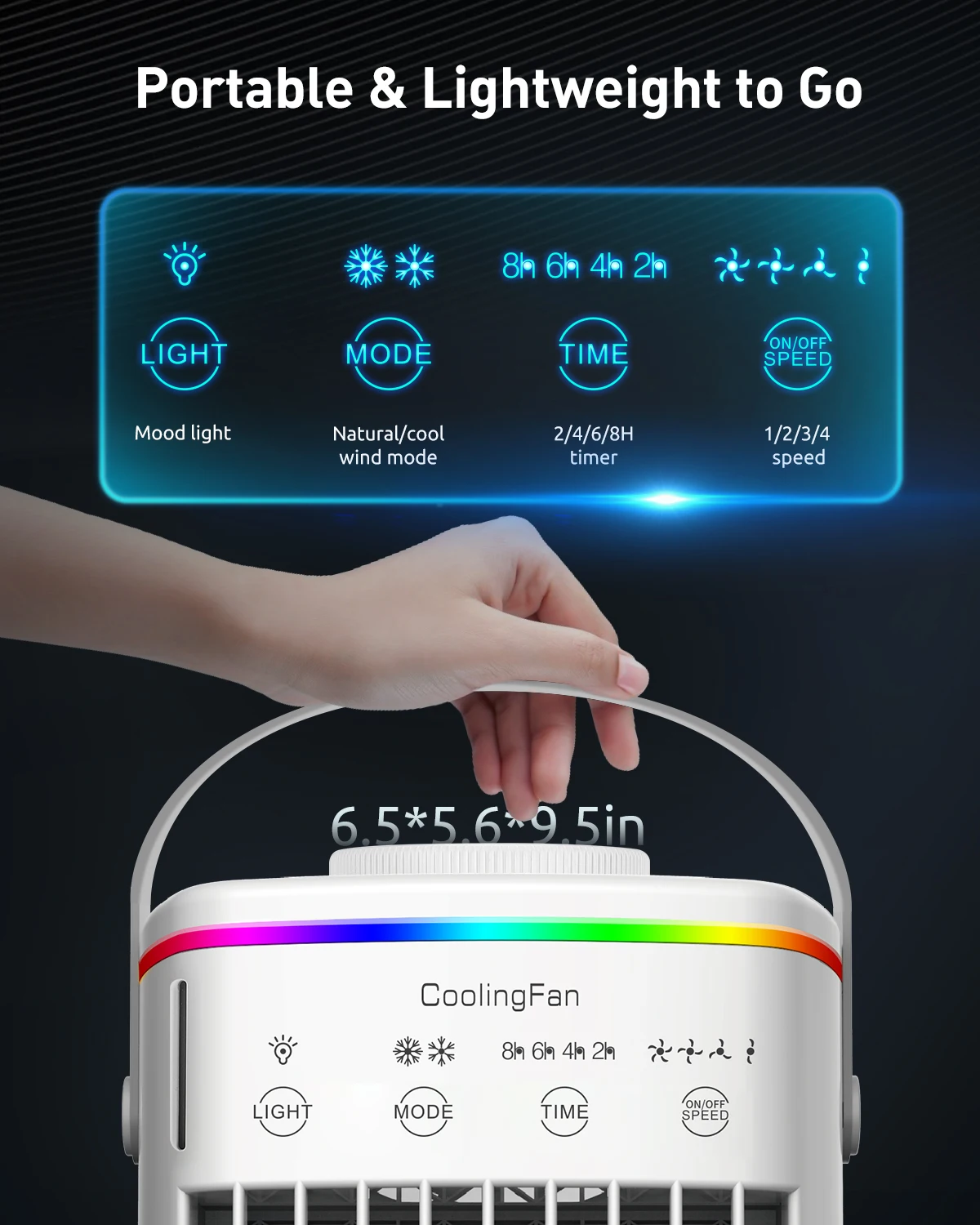

Four speed regulation;

Four speed timing function: 2-4-6-8H;

Cold air/natural air mode optional;

The seven color automatic changing atmosphere light in the water tank can be selected on/off;

Adopting dual ultrasonic atomizer and triple cooling with wet curtain;

Design of fully enclosed upper water tank (≥ 700ml);

The bottom of the machine is equipped with a condensate water tank, which can collect the condensate generated during the cold air process. After being absorbed by the wet curtain, it is evaporated by the fan

To achieve the cooling effect, drainage holes should be set up, and when the water level in the water tank is too high, it can be manually discharged;

Fine mist cooling, using 4.5 μ M atomizer, does not get wet when blown for a long time, does not wet the tabletop;

Adopting a fully waterproof and anti blocking DC 12V motor;

Compact body, easy to carry and move;

The water tank can hold ice cubes

Main technical parameters

(1) Rated voltage: DC 5V 1.5A

(2) Input power: Power 7W

(3) Maximum wind speed: about 3 m/s, testing conditions: at rated voltage and frequency, at a distance of 0-10 cm from the air outlet: use an anemometer to test the maximum dry wind speed (m/s) at high, medium, and low levels.

(4) Rated evaporation capacity: 160ml/h ± 30%.

(5) Rated output air volume: approximately 108m3/h (Q=3600VA)

(8) Total length of power cord: 1200mm.

4. Product dimensions:

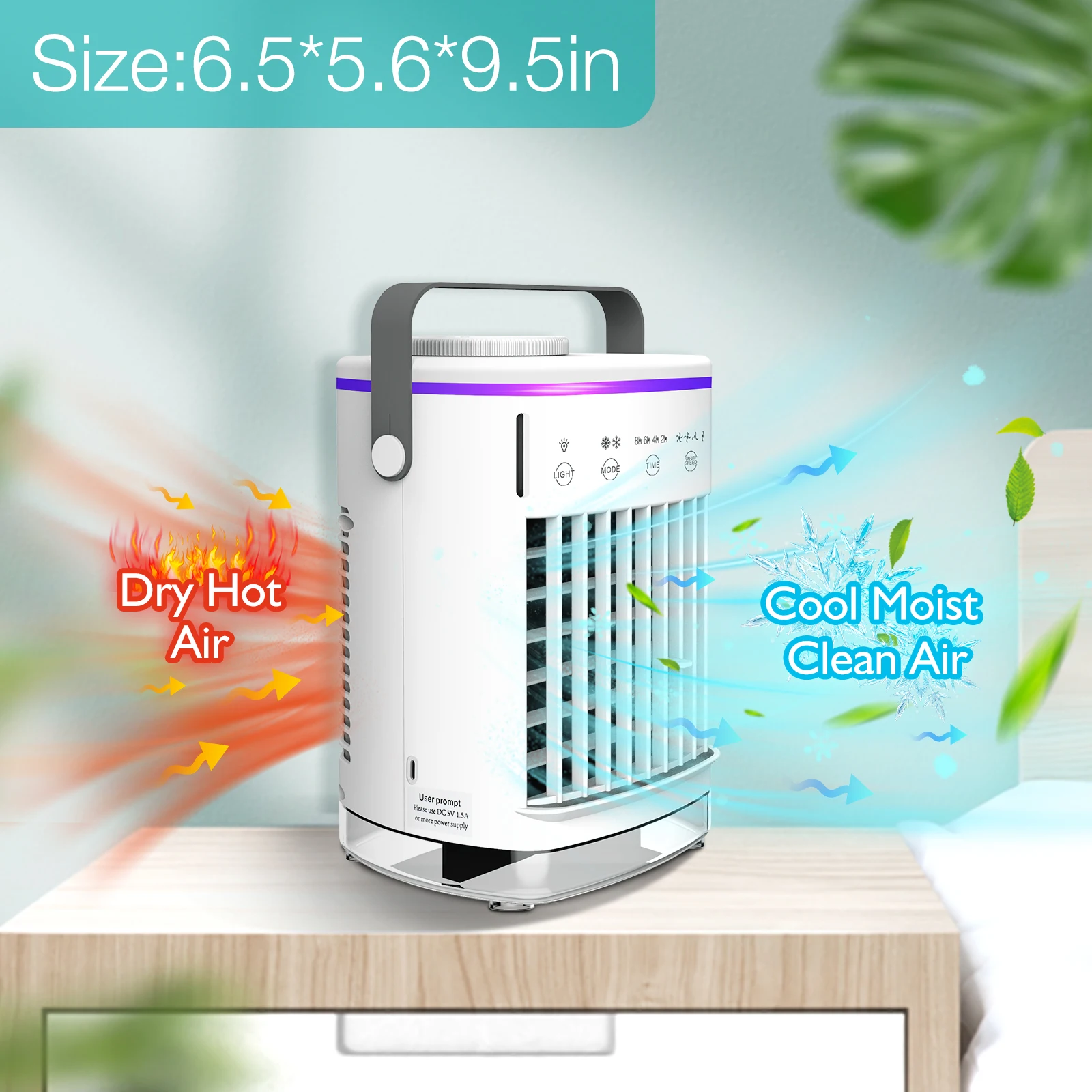

(1) Product Dimensions: l166mm X w143mm X h242mm

(2) color box size: l180mm X w158mm X h256mm

Precautions for use:

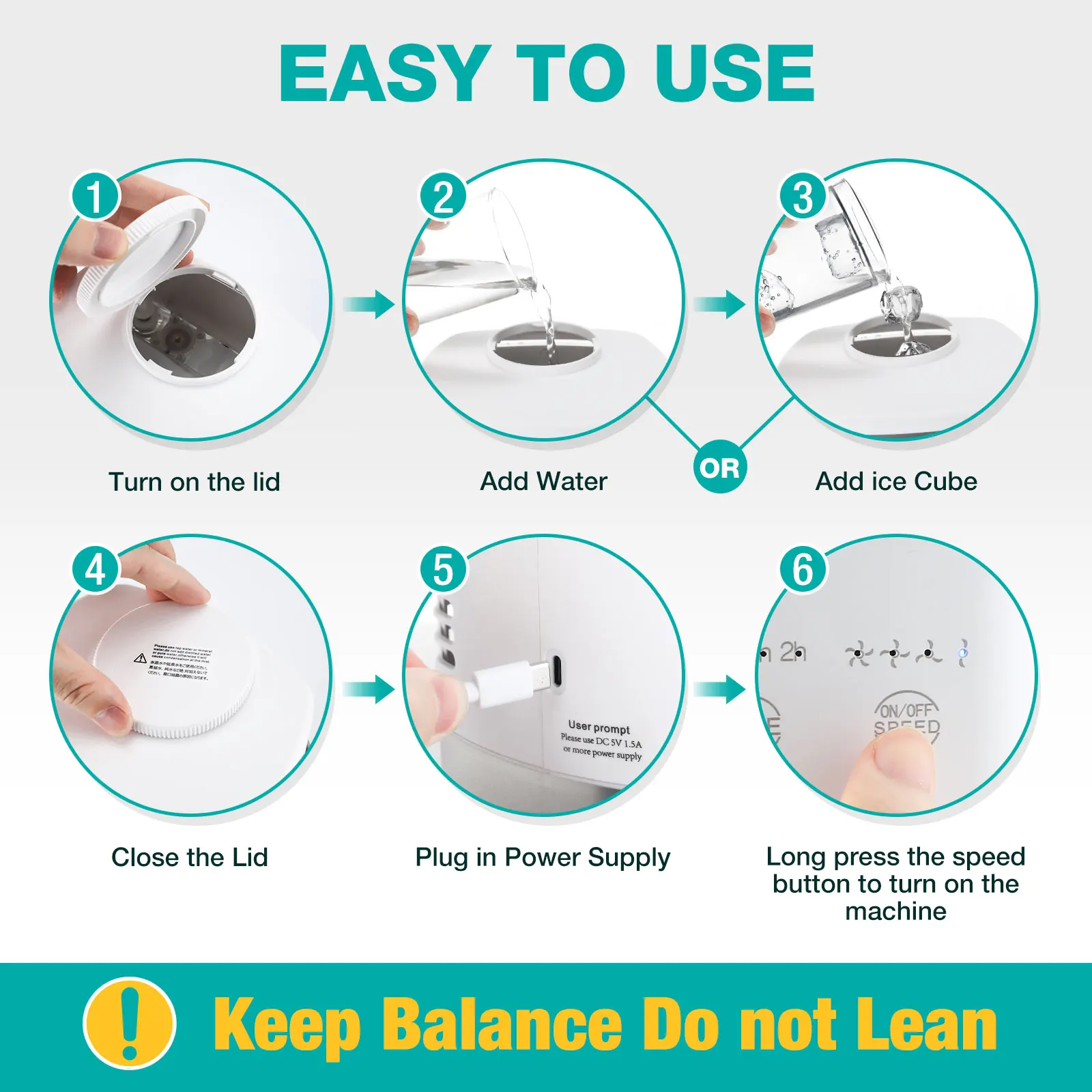

1. Before turning on the cold air function, please keep the water level in the water tank normal;

2. Under high temperature and low humidity environmental conditions, the refrigeration effect is better;

3. Please use clean tap water or mineral water, and do not add distilled or purified water, otherwise it may cause abnormal refrigeration function;

4. Do not add oily essential oils to the water tank to prevent corrosion of the product;

When using the cold air function, there may be condensation droplets on the air outlet grid, which is a normal phenomenon.

6. Do not tilt the machine during use; 6. Please make sure to tightly cover the water tank cover when using it;

7. Do not obstruct the air inlet and outlet;

8. It is strictly prohibited to insert foreign objects such as wooden sticks and iron rods into the inlet and outlet frames;

9. The water level in the water tank shall not exceed the highest water level line;

10. Do not shake this machine during use to prevent condensation water from overflowing;

11. When carrying this product, please drain the water in the bottom condensate tank thoroughly to prevent overflow when the product shakes;

12. Please use a DC5V 1.5A or higher adapter;

13. Please use the standard power cord of this machine;

14. Non professionals are strictly prohibited from dismantling.

Packing List:

1* Air Cooler Fan

1* Manual

1* USB line

1* Packing Box

Notice：

1. Please allow some deviation due to manual measurement and make sure you do not mind before purchase.

2. The color of the actual item may slightly vary from the images due to different computer screens and display settings. Thanks for your understanding!

3. Before using the product，please read the user manual carefully and keep the instructions for future reference.

4.Do not disassemble or repair by yourself ， so as not to damage the machine.

5.Keep out of reach of children and keep out of reach of children.

6.Do not use it in the place of strong electromagetic field , which may cause the work of the host to be unstable.

,
